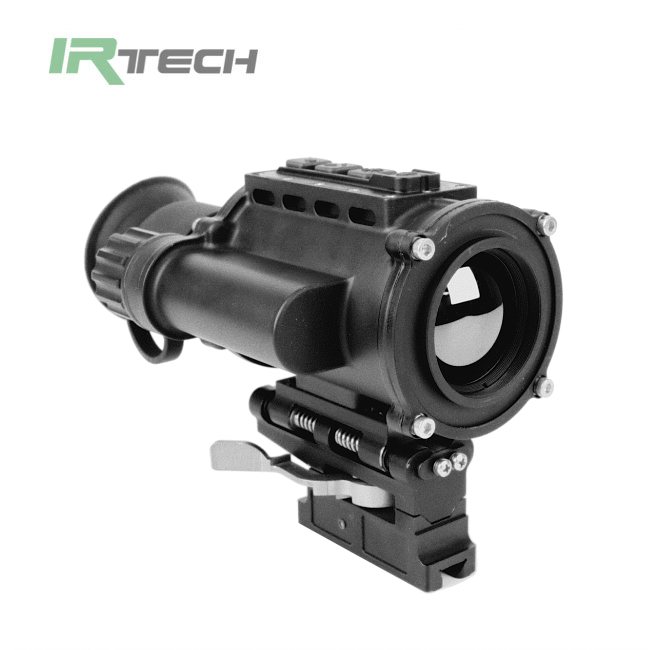

S560 series thermal scope
Monocular OLED display resolution 1024*768
Equipped with rifle scope card slot, suitable for variety of guns
1200g, special impact test equipment for rifle scope
|
Items |
S560 |
|
|
Detector |
||
|
Detector type |
Uncooled focal plane |
|
|
Resolution |
384×288 |
640*512 |
|
Pixel spacing |
17μm |
|
|
NETD |
≤30mk@25℃ |
|
|
Image |
||
|
Focal length |
35mm |
|
|
FOV |
10.7°×8.0° (±5%) |
17.7°*14.3°(±5%) |
|
MRTD |
≤0.6℃ |
|
|
Focus |
Manual focusing |
|
|
Display |
||
|
Monitor |
0.6-inch OLED color display resolution 1024*768 |
|
|
Function |
||
|
Brightness/ Gain |
Automatic/Manual |
|
|
Polarity |
White hot /black hot |
|
|
E-zoom |
x2 , x4 |
|
|
Power system |
||
|
Battery type |
18650 rechargeable |
|
|
Battery continuous working time |
≥5h |
|
|
Environment |
||
|
Working temperature |
-40℃~ 60℃ |
|
|
Storage temperature |
-40℃~ 70℃ |
|
|
Impact resistance |
1200g, special impact test equipment for rifle scope |
|
|
Anti-vibration |
2g, GB/T2423.10（IEC60068-2-6） |
|
|
Encapsulation |
IP67 |
|
|
Physical |
||
|
Weight |
≤0.6Kg(without battery) |
|
|
Color |
Black |
|
|
Dimension |
210(L)*100(W)*115(H)mm |
|
|
External interface |
||
|
External video |
PAL |
|
|
Detection distance |
||
|
Human（1.7×0.5）m |
1000m |
|
|
Vehicle（2.3×2.3）m |
1500m |
|
-
