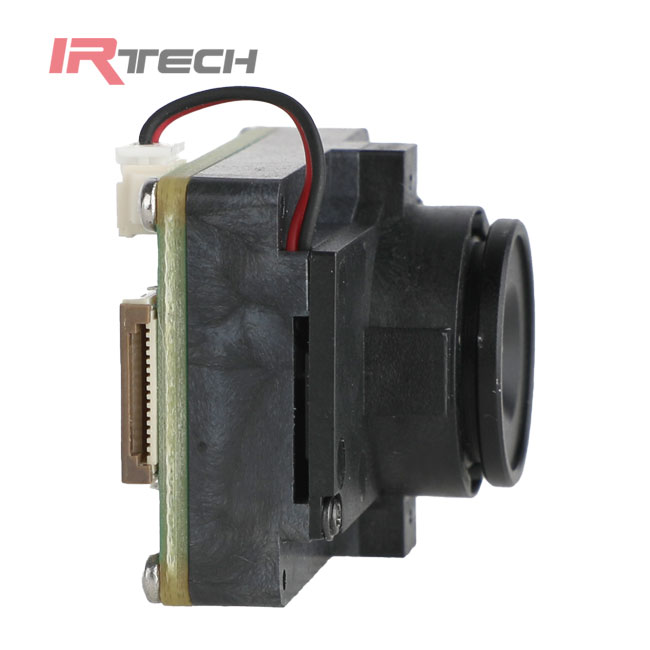

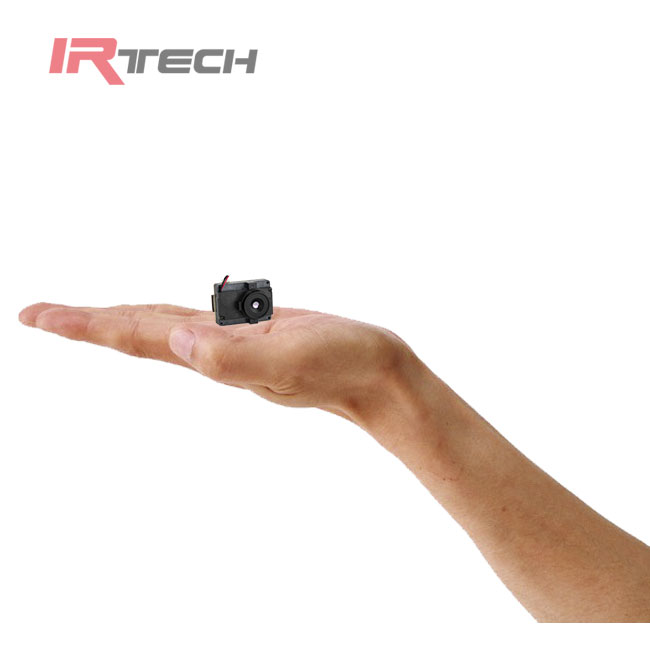

SD16W Module
The module outputs 15 frames (15Hz) of full image infrared temperature data(grey value) per second, and the temperature of each pixel can be obtained through simple conversion(℃), which is easy to operate.
Item |
SD 16W |
Detector Type |
Uncooled microbolometer array sensor |
Resolution |
160×120 |
Pixel Pitch |
17um |
Spectral Response |
8~14um |
NETD |
≤60mK(F/1,300K,50Hz) |
Frame Rate |
15Hz |
Image Calibration |
Complete the replacement of single point,two points,dead point and so on before leaving factory,automatic calibration at startup |
Output Interface |
Both have high-speed serial port and SPI interface at the same time, optional Serial-USB converter board |
Control Port |
RS232 |
Temp Measurement Range |
20℃~50℃ |
Temp Stability |
±1℃ after stable startup |
Accuracy (room temperature) |
After user algorithm calibration, ±0.5℃ , with black body ±0.3℃ |
Temp Data Output |
Full image temperature output |
Working Voltage |
DC 5V±0.1V |
Consumption |
≤0.5W |
Working Temp |
10℃~45℃ |
Whole dimension |
W24.5mm×H32.5mm×D20.7mm |
Installation way |
Via two diagonal φ1.2mm circular holes on the module PCB, install with ST1.4 screws |
Lens |
Focus-free f3.85mm\F1.0 |
FOV(calculated value) |
40°× 30° |
Demo on PC converter board |
can be connected to a PC with a SPI-USB converter board, to display images, temperature measurement and so on function. |
PC software |
PC software to view images, temperature measurement |
