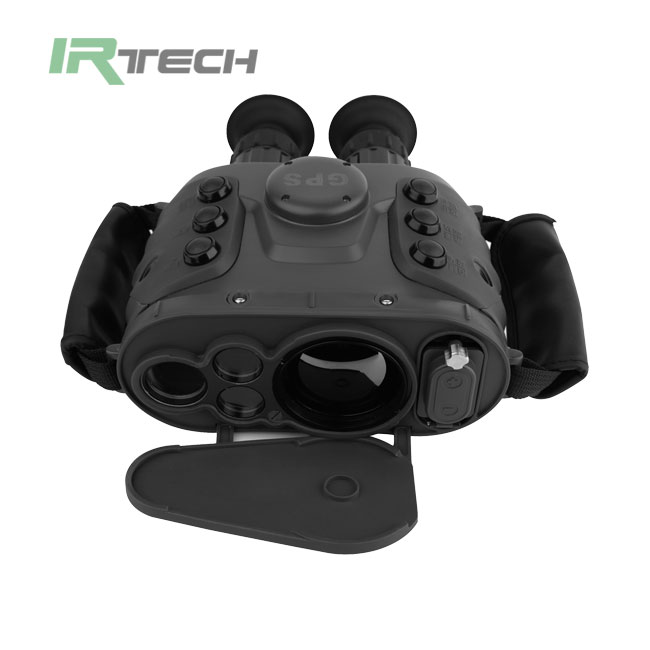

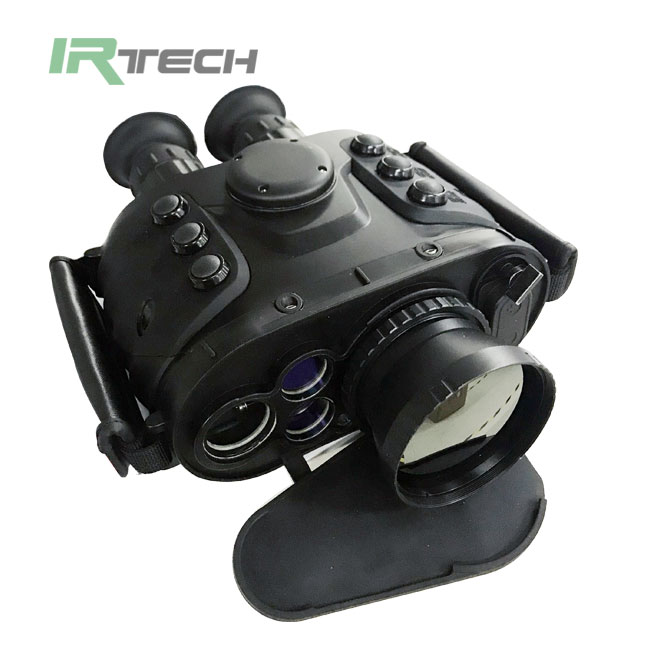

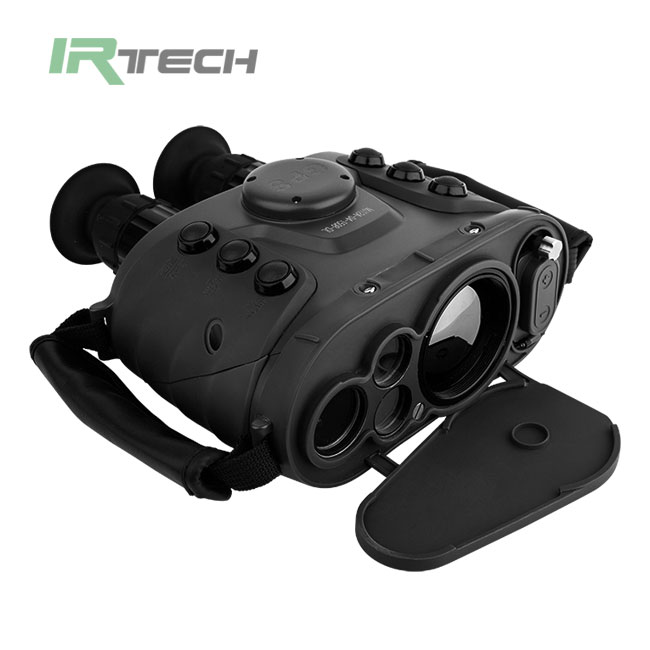

S750MH Series Thermal Imaging Binoculars

Item

S750MH

S750MH-640

Detector

Type

Uncooled FPA

Spectral range

8 - 14 µm

Resolution

384×288

640×480

Frame rate

50Hz

FOV

Standard lens（9°×6.75°），Extended telephoto lens（5.1°×3.8°）

Standard lens（15.2°×11.4°），Extended telephoto lens（8.6°×6.5°）

NETD

≤60mk@30℃

Focus

Auto / Motorized Focus

Display

Screen

HD OLED binocular display，800×600

Polarity

White-hot / black-hot

CCD

Imager

1/3＂CCD、795（H）×596（V）

FOV

9°×6.75°

Storage

Memory

Flash memory

Storage mode

Photo/video recording

File format

BMP/AVI

capacity

Over 10 thousand photos or 4 hours video

Settings

Brightness/gain

Automatic/manual

Color palettes

Black-hot/white-hot

Digital zoom

x 2, x3,  x 4

Information processor

Positioning system

GPS

Accuracy

Lng&Lat 5m, elevation10m

Electronic compass

Angular accuracy

Azimuth 0.6°, pitch angle 0.3°

Laser range finder

Wave baud rate

1.55 µm（safe for eyes）

Distance

20m~4Km

Accuracy

≤2m

Lateral rate

≥96%

Working frequency

3 times /min（10 times/min for emergency case）

Power supply

Battery type

Rechargeable Li-ion battery

Operating time

>4 hours

Charging

Special charger

Environment

Working temp

-30℃～50℃

Storage temp

-40℃～70℃

Humidity

≦90％（Non-condensing）

Encapsulation

IP67

Dimension & weight

Weight

≤1.6Kg

Color

Black（standard）

Dimension

220（L）mm×195（W）mm× 85（H）mm

Interface

External Power

Yes

Video output

PAL

USB

Yes

Installation interface

1/4"-20-UNC

Detection distance

Human（1.7×0.5）m

1900m（Standard lens）

Car（2.3×2.3）m

2700m（Standard lens）

Recognition distance

Human（1.7×0.5）m

600m（Standard lens）

Car（2.3×2.3）m

900m（Standard lens）
