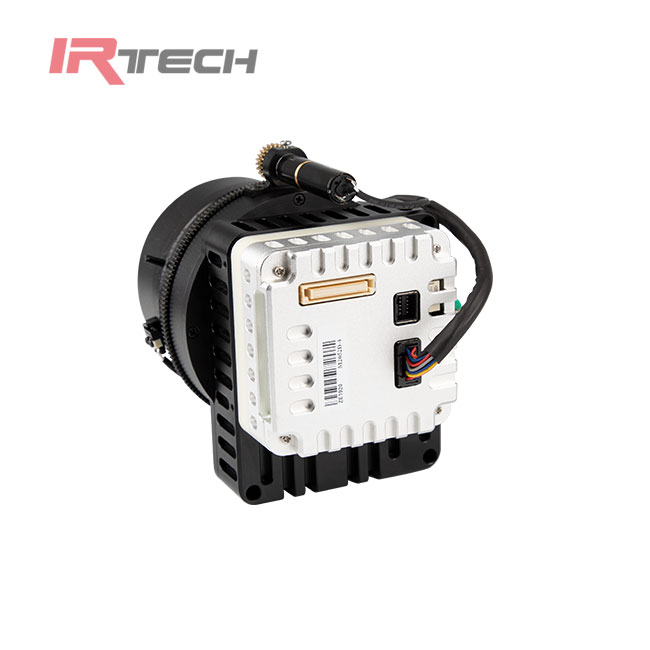

ZE1920 HD Module
◆ 50HZ full real-time imaging
◆ HDMI high-definition image output
◆ Support grayscale alarm function
◆ 1~8x continuous zoom function, no mosaic image
|
Items |
ZE1920 |
|
Detector |
|
|
Types |
Uncooled focal plane micro-thermal type |
|
Resolution |
1920×1080 |
|
Pixel space |
15μm |
|
Frame Rate |
50Hz |
|
Spectral Response |
8～14um |
|
Noise equivalent temperature difference |
≤60mK |
|
Image control |
|
|
Brightness/contrast adjustment |
Manual and automatic |
|
Color palette |
14 kinds of color palette and support reverse |
|
Digital zoom |
1~8x continuous zoom (step length 0.1) |
|
Non-uniformity correction |
Manual calibration, automatic calibration after power-on, timing calibration after normal work (timing time length can be set). |
|
Image processing |
Digital detail enhancement DDE |
|
Flip function |
Flip up and down, flip left and right,flip the mirror image |
|
Photo function |
Support SD card,bmp format |
|
Setting |
|
|
OSD menu |
Yes |
|
Language |
Chinese/ English |
|
Alarm |
|
|
Grayscale alarm |
Image alarm frame mark/LVTTL alarm signal/serial port alarm command (switch value) |
|
Alarm threshold |
Can be set |
|
Response time |
Alarm response time ≤0.2s. |
|
Lens |
|
|
focal length |
23mm/F1.0（64.1°×38.8°） |
|
45mm/F1.0（35.5°×20.4°） |
|
|
90mm/F1.0（18.2°×10.3°） |
|
|
Drive method |
Electric |
|
Drive interface |
1 channels, support DC6~12V DC motors. |
|
Electric focusing |
Continuous adjustment/step length adjustment (step length 0-32 files can be set), with rheostat interface, control command Pelco-D. |
|
Auto focusing |
Auto focus time ≤ 3s |
|
Power system |
|
|
External power supply |
DC12V |
|
Protective function |
Overvoltage, undervoltage, and reverse connection protection |
|
Video output |
|
|
Digital video interface |
HDMI,LVCMOS(16bit,BT1120) |
|
HD Video |
HDMI |
|
Control |
|
|
Control interface |
RS422，TTL 3.3V |
|
Control command |
Focus, zoom, autofocus, clear value output, electronic amplification, color scale switching, polarity switching, brightness setting, gain setting, enhancement, and other parameter setting commands. |
|
Interface |
|
|
Hardware interface |
Connectors with latches (power supply, serial port, motor control interface, etc.) |
|
Installation interface |
M2*0.4 screw holes, 3 sides (two on each side), optional 1/4"-20-UNC tripod adapter. |
|
Dimenstion |
W82×H93×D50mm （excluding lens and lens interface） |
|
Environment |
|
|
Working temp. |
-40℃~ +60℃ |
|
Storage temp. |
-45℃~ +70℃ |
|
Impact resistance |
According to GB/T15211 category II requirements |
|
Vibration resistance |
According to GB/T15211 category II requirements |
-
