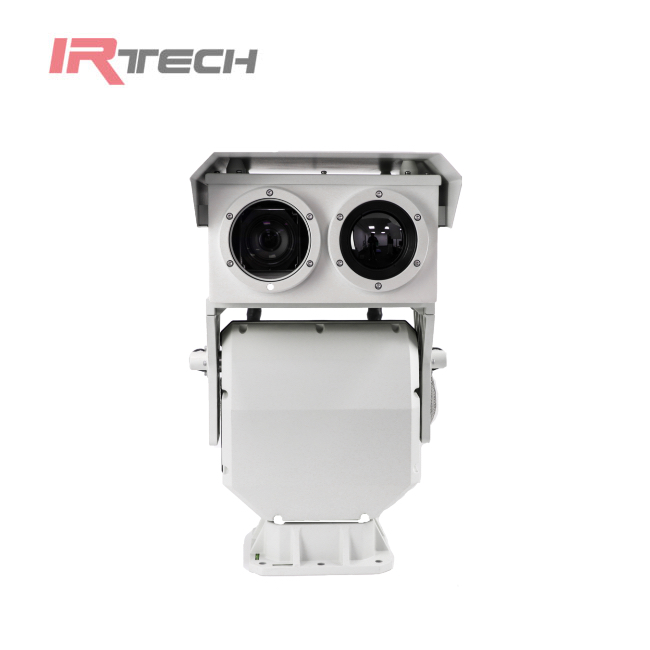

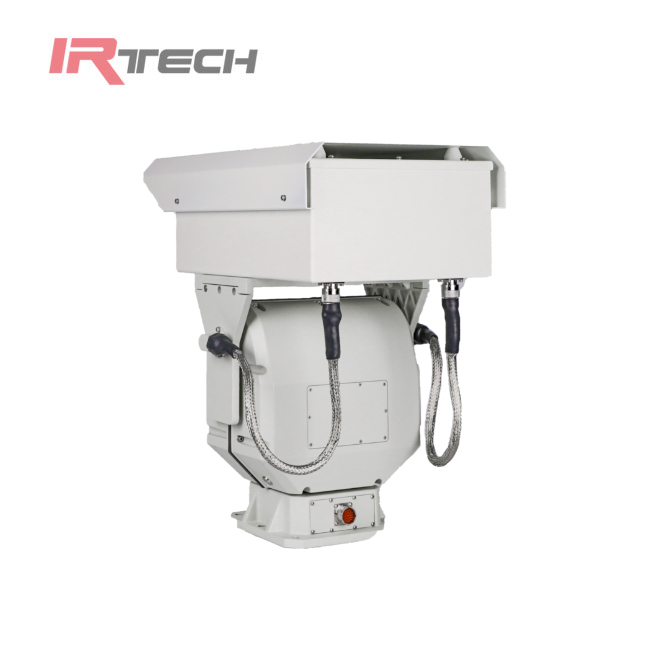

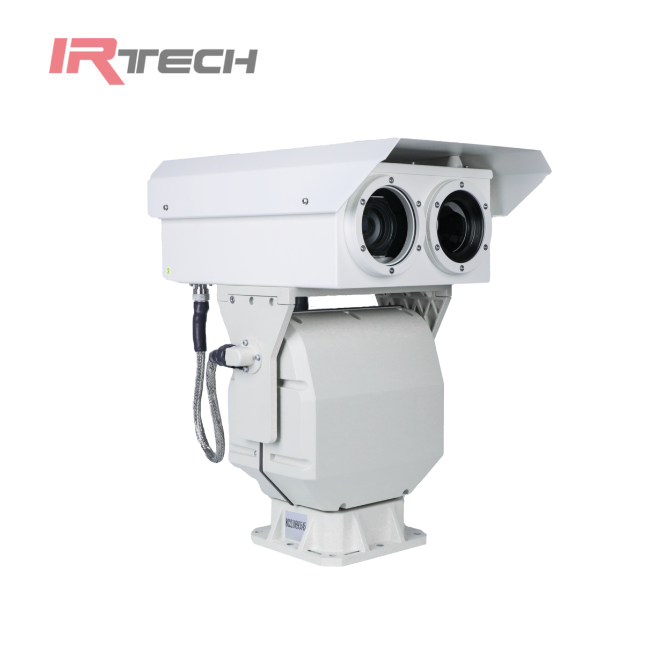

DLS-NP Series Thermal Imaging System
☆ Infrared thermal imager + HD visible light camera IP network output.
☆ The use function of digital image detail enhancement (DDE) enhances small targets' detection ability.
☆ A variety of user-defined automatic configuration modes to meet various detect situation requirements.
☆ The design of anti-strong wind structure, power loss, and self-locking function, stable operation at low speed.
|
Item |
DLS-NP Series |
|
Thermal camera |
|
|
Detector type |
Uncooled VOx detector |
|
Spectral range |
8~14um |
|
Resolution |
640×512 |
|
NETD |
≤30mK@f/1,300K |
|
Pixel size |
17um |
|
Focal length |
75mm/100mm/150mm/30~150mm/25~225mm optional |
|
Video output |
PAL |
|
Frame rate |
50Hz |
|
Digital zoom |
1～16X |
|
Polarity |
14 pseudo-colors |
|
Brightness/Gain |
Auto/Manual/Adjustment |
|
Image enhancement |
Yes |
|
Reticle |
Support |
|
Visible camera |
|
|
Resolution |
1920x1080 |
|
Sensor |
2.0M 1/1.8" CMOS |
|
Lens |
6.1~440mm/6.1~561mm/10~945mm optional |
|
Illumination |
Color:0.0005Lux@(F1.4,AGC ON) |
|
Focus |
Auto |
|
Aperture |
Auto |
|
WDR |
Support |
|
Fog penetration |
Support |
|
PTZ |
|
|
Horizontal angle of rotation |
0~360° continuous rotation |
|
Vertical angle of rotation |
-60°~+60° |
|
Horizontal rotation speed |
0.01°~30°/S |
|
Vertical rotation speed |
0.01°~12°/S |
|
Number of PTZ preset |
200 |
|
Auto scan |
1 |
|
Auto cruise control |
8 |
|
Material |
Aluminum alloy |
|
Housing |
|
|
Appearance Color |
Oyster white lacquer |
|
Material |
Aluminum alloy |
|
Interface |
Aviation connector |
|
Visor |
Provide |
|
heating |
Built-in temperature automatic control |
|
Physical parameters |
|
|
Dimension |
550mm×380mm×525mm |
|
Protection class |
IP66 |
|
Weight |
50kg |
|
Working Temp |
-20°C~55°C |
|
Storage Temp |
-40°C~70°C |
|
System interface |
|
|
Video |
1 RJ45 10M/100M ethernet port |
|
Protocol |
ONVIF |
|
Power supply |
AC 24V±10% |
|
Power consumption |
<200W (With heater) |
-
