IRtech-RS6B Series Thermal Scope

Items

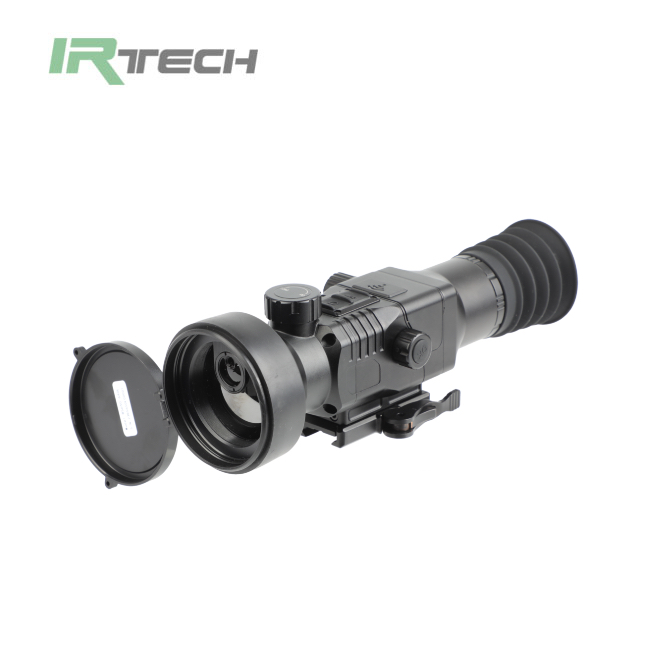

RS6B50-640L

RS6B75-640L

Sensor

Type

Uncooled Vox FPA Micro bolometer

Pixel Array

640×512

Pixel Pitch

12μm

NETD

≤20mk(25 °C, F#=1.0)


Focal Length

50mm

75mm

FOV(±5%)

7.5°x5.7°

5.9°x4.7°

Min Focus

5m

Lens Aperture

F1.0

F1.2

Frame Rate

50Hz

Focus method

Manual

Display

Display

0.49 inch Color OLED 1440*1080 Resolution

Exit Pupil Diameter

6mm

Exit Pupil distance

55mm

Eyepieces Magnification

11.2X

Basic Magnification

X2.72

X4.09

Diopter

-5D~+5D Adjustable

Thermal imaging Operation

Brightness/Contrast

Adjustable

NUC

Auto/Manual

Polarity

Black/White/Green/Iron/Red Hot

Digital Zoom

X1.0~8.0

Crosshair

Support 10

Hot Spot track

Support

Picture-in-Picture

Support

Bad Pixel correction

Support

WI-FI

Support AP/WLAN

Rangefinder

Ranging distance: 10–2,000m; Ranging accuracy: ±1m (10–1,000m), ±5m (1,000–2,000m).

Ballistic Calculation

Support

Bluetooth

Requires optional Bluetooth controller.

Memory

Capacity

32G

Audio Record

Support

Shot-Activated Video

Support

Recording Type

Photo/Video

Power Supply

Battery Type

2 kinds of Power supply, Built in type / external Battery (16500*1)

Battery capacity display

Support

Working Time

≥5h

Environment

Shock Resistance

1200g/ms

Vibration Resistance

2g，GB/T2423.10（IEC60068-2-6）

EMC

CE Complied

Humidity

0~95%

Working Temperature

-30℃~+55℃ (-22 °F to 131°F)

Physical

Housing Color

Black

Mounting

Integrated 20mm Picatinny rail interface

Protection level

IP67

Dimension

190×72×85mm

208×102×83mm

Weight

≤575g

≤860g

Interface

Power Supply

Type-C interface

(Charging ,Data Transmission, External Video output )

Detection distance

Human（1.8×0.5）m

2300m

5100m

Car （2.3×2.3）m

3200m

7200m

Recognition Distance

Human （1.8×0.5）m

1150m

1720m

Car （2.3×2.3）m

1600m

2400m
