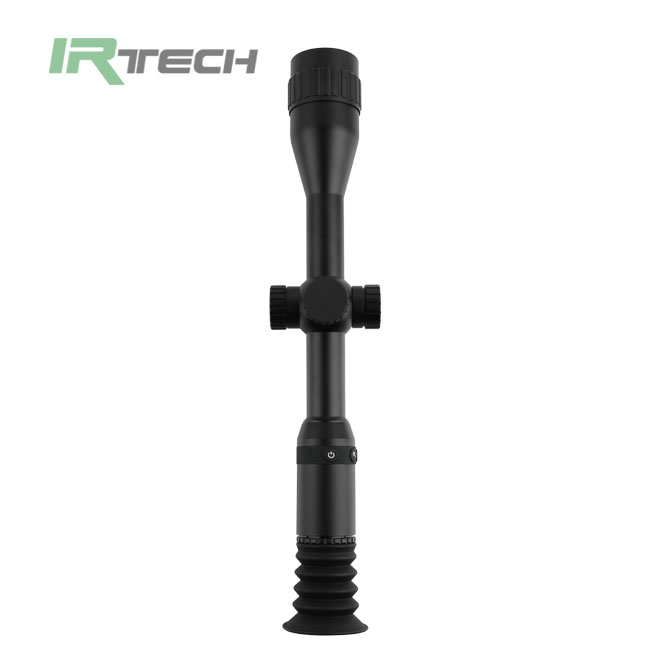

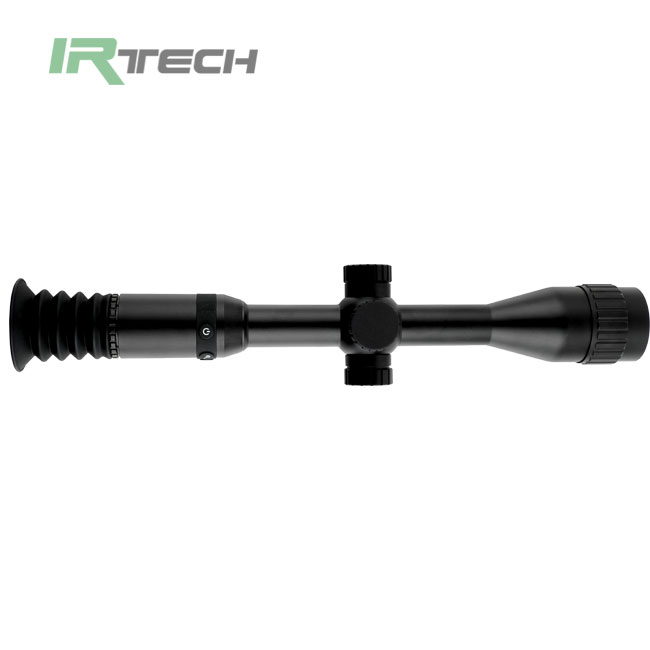

IRtech-RS1 Series Thermal Scope
Support wifi, built-in thermal video record and image capture
HD 1280*960 monitor;
Working time up to 7 hours or more ;
|
Item |
RS135-384 |
RS150-384 |
RS135-640 |
RS150-640 |
|
Detector |
||||
|
Type |
Uncooled FPA |
|||
|
Resolution |
384×288 |
640×480 |
||
|
Pixel pitch |
17μm |
|||
|
NETD |
≤60mk@25℃ |
|||
|
Image |
||||
|
Focal length |
35mm |
50mm |
35mm |
50mm |
|
FOV(±5%) |
10.7°*8.0° |
7.5°*5.6° |
17.7°*13.3° |
12.4°*9.3° |
|
MRTD |
≤0.6℃ |
|||
|
Frame rate |
50HZ |
|||
|
Focus |
Manual |
|||
|
Thermal image operation |
||||
|
Brightness/gain |
Automatic/Manual |
|||
|
Polarity transformation |
Black-hot/White-hot |
|||
|
Digital zoom |
x2，x3，x4 |
|||
|
Hot spot tracking |
support |
|||
|
Image storage |
||||
|
Built-in |
32G |
|||
|
Storage |
video record,photograph |
|||
|
Power |
||||
|
Type |
rechargeable battery |
|||
|
Working time |
＞7hours |
|||
|
Physical features |
||||
|
Housing color |
Black |
|||
|
Interface |
can equipped with standard aiming fixture |
|||
|
Protect level |
IP66 |
|||
|
Interface |
||||
|
USB-C |
Yes(charging and data copy) |
|||
|
Detection distance |
||||
|
human（1.7×0.5）m |
1100m |
1600m |
1100m |
1600m |
|
vehicle（2.3×2.3）m |
2300m |
3300m |
2300m |
3300m |
|
Recognition distance |
||||
|
human（1.7×0.5）m |
650m |
800m |
650m |
800m |
|
Vehicle（2.3×2.3）m |
1100m |
1600m |
1100m |
1600m |
-
