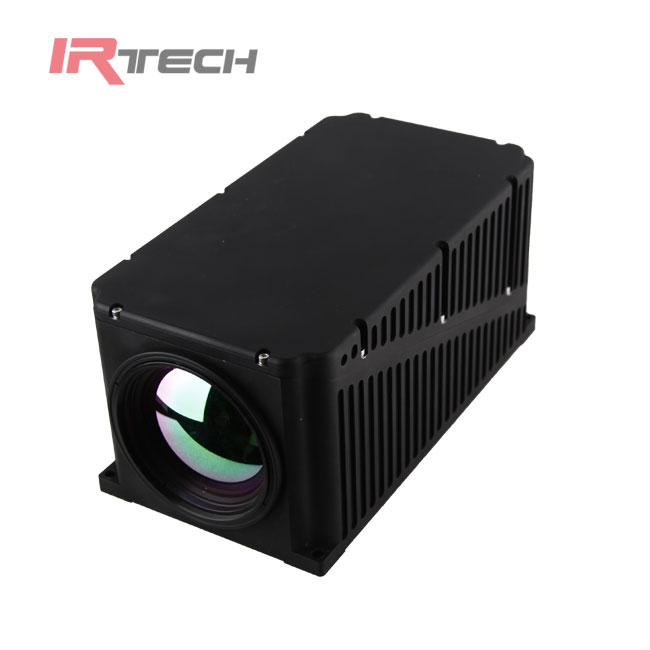

DLD-M420C-640 cooled thermal module

◆ 640 * 512-pixel mercury cadmium telluride-cooled focal plane detector
◆ 50Hz full-time imaging ultra-long -distance observation
◆ 21 ~ 420mm ultra-long focal length, 21 times optical continuous zoom lens, 1 ~ 4 times electronic zoom, long observation distance, high sensitivity, clear image
◆ Support lens preset
◆ Image fast automatic focusing



Items

Parameters

DLD-M420C-640

Detector

Detector type

HgCdTe cooled focal plane detector

Pixel

640×512

Pixel spacing

15μm

NETD

≤35mk

Field frequency

50Hz

Wavelength range

3.7-4.8μm

Lens

Focal length

21~420mm F4.0

FOV

27.5°×22.0°/ 1.3°×1.1° ±5%

Lens Type

21x  Optical continuous zoom lens

Lens preset

Support for lens prefabrication function

Operation

Warm-up time

<6min（at normal temperature of 25 ° C）

Brightness/gain adjustment

Automatic brightness/gain

Polarity transformation

Black heat/white heat switching

E-zoom

1~4x

Correction function

Manual

Image enhancement features

Support

Preset call and setting

Support 1~80 lens preset settings and call functions

Physical

Dimension

360×140×140mm

Weight

＜5Kg

Power system

External power supply

DC24V

Power consumption

≤60W（maximum instantaneous）

≤30W（normal operation at normal temperature of 25 ° C）

Environmental

working temperature

-35℃- +55℃

Storage temperature

-45℃- +65℃

Encapsulation

IP40

Interface

Power interface

Yes

Analog video output

CVBS

SDI output

SDI output

Serial port

RS422

Digital video output (customizable)

14-bit and 8-bit interlaced output
