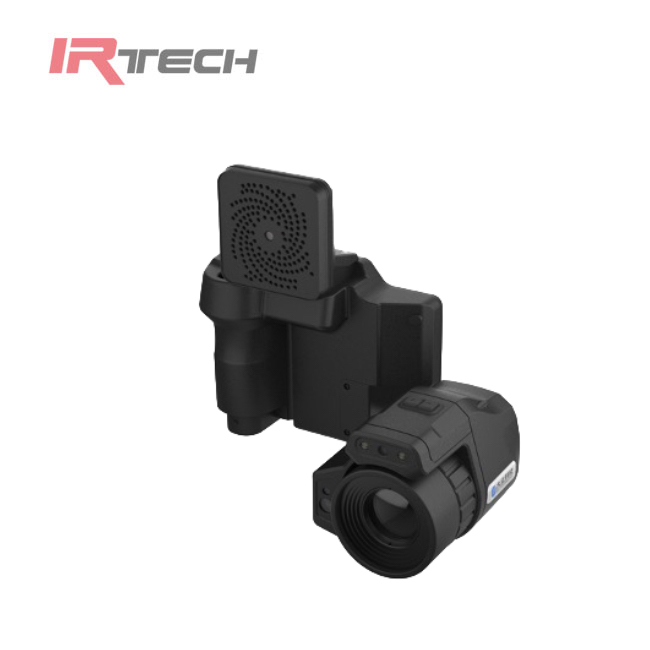

DL801SR Thermal & Acoustic Imaging Camera
capable of superpixels up to 1280 × 1024
◆ Acoustics: 162 high-sensitivity digital MEMS
Ultrasonic microphones are spirally distributed to
ensure better spatial resolution and stronger sound
source localization capability.
◆ Multiple detection modes: partial discharge,
gas leakage, supporting multiple working modes
such as full frequency, vibration, noise, etc..
|
Items |
DL-801SR |
|
IR basic parameter |
|
|
Detector type |
Uncooled FPA |
|
Resolution |
640×512 |
|
Super pixel |
1280×1024 |
|
NETD |
≤0.03℃@30℃ |
|
Wavelength |
7-14ᶙm |
|
FOV |
25°×19°/0.2m |
|
Spacial resolution |
0.66mrad |
|
Frame rate |
60Hz |
|
Focal method |
Manual /Auto /Electrical /Laser /Touch screen /Continuously |
|
Built-in visible light |
13MP，CMOS module，dual LED fill light |
|
Digital zoom |
1～40x continuously |
|
Acoustic imaging parameter |
|
|
Acoustic sensor |
162 high-sensitivity digital MEMS ultrasonic microphones |
|
Detection Distance |
0.3m~130m |
|
Ultrasonic FOV |
70°（diagonal） |
|
Acoustic Measurement Dynamic Range |
26dB~132dB |
|
Acoustic Refresh Rate |
≥25FPS |
|
Sound Sampling Frequency |
200kHz |
|
Temperature measurement |
|
|
Measurement range |
-40℃- +650℃，expandable to 2000℃。 |
|
Measurement accuracy |
Range of 0~150 ℃: ± 1 ℃ or ± 1% (take the larger absolute value) Other ranges: ± 2 ℃ or ± 2% (take the larger absolute value) |
|
Measurement mode |
Real time 10 movable points, 10 movable areas (highest and lowest temperature capture, average temperature measurement), 10 movable lines for temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color). |
|
Temperature correction |
Support correction of temperature measurement parameters for emissivity, ambient temperature, reflection temperature, relative humidity, target distance, and infrared window (temperature and transmittance) |
|
Acoustic measurement |
|
|
Frequency range |
2kHz～100kHz |
|
Measurement mode |
Support single/multiple sound sources (up to 10 sound sources), area focusing, and shields external interference |
|
Positioning deviation |
≤1° |
|
Detection mode |
Partial discharge, gas leakage, industrial noise , and sensitive detection |
|
Display |
|
|
Monitor |
5 "color LCD capacitive touch screen |
|
Imaging mode |
Infrared, visible light, fusion, picture in picture, acoustic image , acoustic thermal, and thermal acoustic mode. |
|
Palette |
11 color palettes available (including iron red, rainbow, black and white, black and white reversal, etc.) |
|
Image processing |
Auto/Manual adjustment of contrast / brightness, auto enhancement mode |
|
Digital zoom |
Infrared：1-40x continuously Acoustic：1-8x continuously |
|
Image storage |
|
|
Digital camera |
Thermal: 13MP, industrial grade digital camera Acoustic: 13MP, industrial-grade digital camera |
|
Capacity |
Internal 128G memory and external 32G SD card (expandable) |
|
Storage |
Manual/automatic photo or video recording |
|
Format |
JPG (infrared, visible light, fusion, acoustic image) MP4 (Non-full Radiation Video) DLV (Full Radiation Video) |
|
Annotation |
Voice annotation: support 180 seconds voice recording, stored with the image (built-in microphone, can be recorded and played via Bluetooth) Text annotation: supports keyboard input Sketch annotation: support |
|
Intelligent diagnosis & analysis |
|
|
Acoustic |
Support signal time-domain analysis, spectral analysis, partial discharge pattern display (PRPD), discharge type judgment and gas leakage analysis |
|
Infrared |
Support local analysis of infrared images and generation of infrared reports |
|
Back-end software |
Support one click batch report generation, custom report templates, temperature measurement curves, temperature histograms, and temperature data export. |
|
Intelligent patrol |
Ledger creation / Automatic naming / Batch import / Batch diagnostics / Batch report generation |
|
Data connection |
|
|
Mobile data |
Support full standard 4G/5G mobile data (optional) |
|
WIFI |
Yes |
|
Hot spot |
Yes |
|
USB |
Yes |
|
DP |
Yes |
|
Bluetooth |
Yes |
|
Cloud platform |
Yes (optional) |
|
Others |
|
|
Laser |
Laser rangefinder |
|
Positioning |
Yes |
|
E-compass |
Yes |
|
Microphone |
Yes |
|
Buzzer |
Yes |
|
Fill light |
2 LED |
|
Power system |
|
|
Battery type |
Lithium rechargeable |
|
Endurance |
3hr working continuously |
|
Charging |
Smart charger charging or directly charging(AC power adapter or 12V in car power supply) |
|
Power saving mode |
Auto hibernation/ shutdown |
|
Weight |
≤ 1.7Kg (including battery and standard lens) |
|
Tripod |
1/4″-20-UNC |
|
Power saving mode |
Auto sleep and shutdown |
|
Environmental |
|
|
Working temperature |
-15℃-+50℃ |
|
Storage temperature |
-40℃-+70℃ |
|
Humidity |
≦95％（non-condensing） |
|
Protection grade |
IP54 |
|
Shock |
30G，IEC68-2-27 |
|
Vibration |
2G，IEC68-2-6 |
|
EMC |
GB/T 18268.1-2010 |
-
