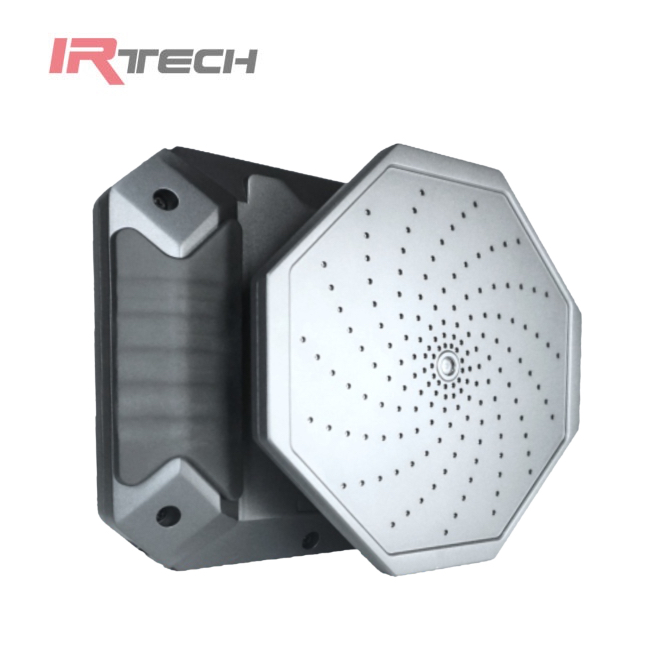

DL-SP64 Acoustic Imaging System
· Supports intelligent diagnostics, intelligent analysis, and automated batch report generation.
· Features multiple detection modes: partial discharge mode, gas leak mode, supporting full-frequency detection, vibration noise, and other operational modes.
|
Item |
Technical Specs |
|
|
Microphone Array |
Number of Microphones |
164 |
|
Microphone Type |
High-sensitivity digital MEMS ultrasonic microphone |
|
|
Detection Distance |
0.3 - 150m The maximum distance is related to the size of the sound source |
|
|
Microphone Sensitivity |
-41dBFS |
|
|
Acoustic Measurement Dynamic Range |
100dB |
|
|
Frequency Range |
1kHz～100kHz 12.1 to 114.6 dB SPL (± 1 dBSPL 2 kHz) 4.4 to 101.2 dB SPL (± 2 dBSPL 19 kHz) 12.8 to 119.2 dB SPL (± 1 dBSPL 35kHz) 19.8 to 116.1 dB SPL (± 3 dBSPL 52 kHz) 41.4 to 129.0 dB SPL (+ 1 dBSPL 80 kHz) 54.4 to 135.5 dB SPL (+ 1 dBSPL 100 kHz) |
|
|
Sound Sampling Frequency |
200kHz |
|
|
Acoustic Refresh Rate |
≥25FPS |
|
|
Image Display |
LCD Screen |
7" LCD touch screen, resolution 1280 x 800, high-brightness screen with adjustable brightness, clearly visible under strong sunlight. |
|
Ultrasonic Field of View |
66×55° |
|
|
Visible Light |
13 megapixels |
|
|
Acoustic Detection |
Ultrasonic Spectrum Function |
Supports PRPD analysis graph function, supports more than three center frequencies, has PD value display, and supports phase and synchronization frequency adjustment. |
|
Threshold Adjustment |
Has threshold adjustment function. In noisy and interfering environments, the upper and lower limits of positioning imaging can be set to shield interference signals; at the same time, the imaging area can be selected, and interference outside the area will no longer be imaged. |
|
|
Signal Spectrum Distribution Graph |
Has the function of signal spectrum distribution graph, which can display the dynamic graph of the spectrum distribution of the measured signal in real time. |
|
|
Frequency Band Selection and Adjustment |
The upper and lower limits of the sound detection frequency band can be manually adjusted continuously and quickly. |
|
|
Imaging Dynamic Range Adjustment |
Has imaging dynamic range adjustment function, and the imaging threshold can be adjusted on the interface to scale the spot display size and accurately locate the fault point without entering the secondary menu. |
|
|
Functions and Interfaces |
Photographing Function |
Supported, image format: .jpeg
|
|
Video Recording Function |
Supported, video format: .mp4
|
|
|
Text Annotation Function |
Supported |
|
|
USB |
Supports USB3.0 |
|
|
Bluetooth |
Supported |
|
|
WIFI |
Supported |
|
|
Storage Capacity |
128G, expandable to 1TB |
|
|
Management Software |
Account Management |
Supports the establishment and management of back-end software accounts |
|
Usability |
Intuitive user interface |
|
|
Transparency |
1-100% |
|
|
Analysis Function |
Supports time-domain analysis of signals, time-domain local expansion analysis, spectrum analysis, partial discharge spectrum, and has the function of judging discharge types; |
|
|
Batch Analysis |
Supports batch import, batch analysis, and batch export of reports |
|
|
Other Parameters |
Battery |
Lithium battery, single battery working time is not less than 4 hours |
|
Weight |
1.2kg |
|
|
Environmental Parameters |
Operating Temperature |
-20℃-+50℃ |
|
Storage Temperature |
-40℃-+60℃ |
|
|
Humidity |
≦95％ (non-condensing) |
|
|
Electromagnetic Compatibility |
ClassB
|
|
-
