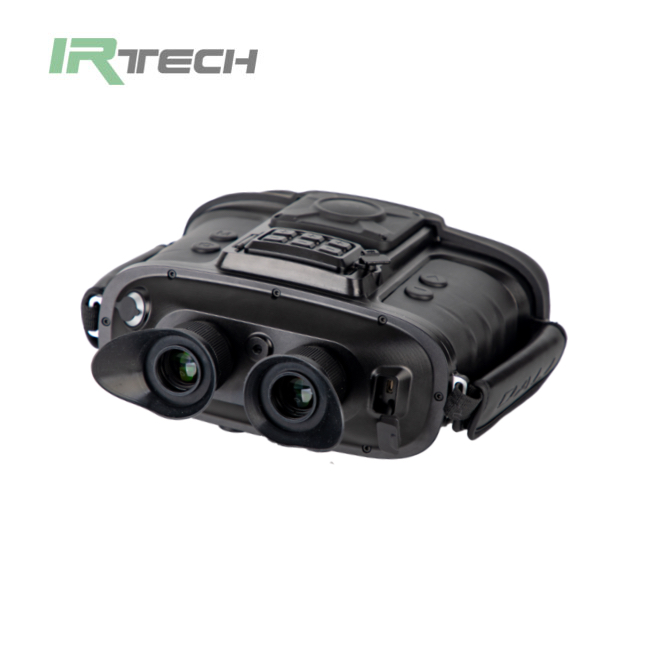

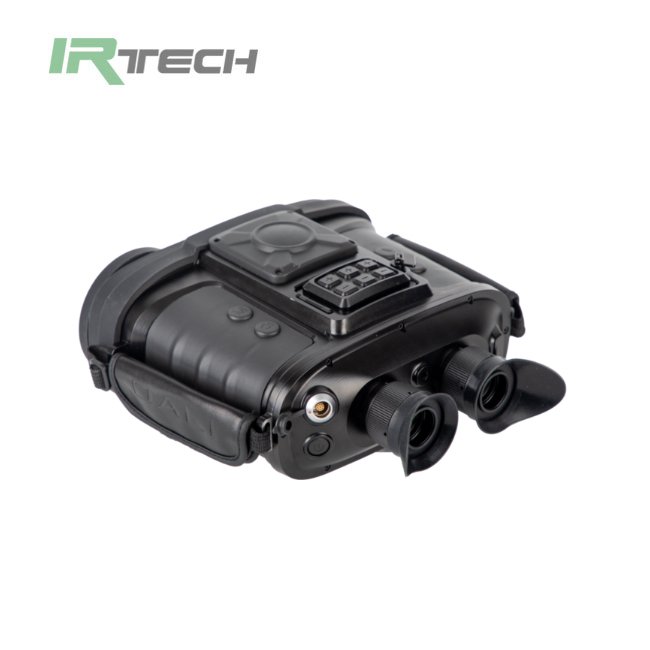

MS735MH Series Thermal Imaging Binocular
|
Items |
MS735MH |
MS735 |
|
Sensor |
||
|
Type |
Uncooled focal plane Array micro bolometer (VOx) |
|
|
Pixel Array |
640*512 |
|
|
Pixel pitch |
12μm |
|
|
Thermal Imaging Camera Channel |
||
|
Focal length |
25/80mm dual field of view |
|
|
Focus range |
5m/20m~∞ |
|
|
Focusing method |
Auto/Motorized |
|
|
Visible light Camera Channel |
||
|
Resolution |
5 megapixels |
|
|
Field of view |
59.4°×35.7°-2.3°×1.3°（±5%）zoom |
|
|
Fog Penetration function |
Visible light Camera with penetrate Fog function |
|
|
Focusing method |
Motorized focus |
|
|
Digital zoom |
32x |
|
|
Low light Camera Channel |
||
|
Resolution |
2MP |
|
|
Display |
||
|
Resolution |
Color OLED, resolution 1440 * 1080 |
|
|
Frame rate |
50Hz |
|
|
Pupil distance |
64mm |
|
|
Diopter |
-4D~+4D adjustable |
|
|
Functions |
||
|
Laser rangefinder |
Ranging range:50~6000m, accuracy:±2m, laser wavelength: 1535nm. |
None |
|
Positioning Module |
Support BeiDou (BD) and GPS positioning |
None |
|
Target Guidance |
Support |
None |
| Electronic compass | Support | None |
|
WiFi |
Support, image display and remote control. |
|
|
Digital zoom |
1.0~8.0X, center area picture-in-picture zoom display (2x) |
|
|
Hot Spot Tracking |
Support, Crosshair cursor tracking the point with the highest temperature in the scene. |
|
|
Distance Display |
Display laser distance measurement results in meters (m) / yards (yard) |
|
|
Crosshair |
Support |
|
|
Infrared Mode |
White heat, black heat, iron red. |
|
|
Fusion Mode |
Black and white fusion, desert fusion, jungle fusion, ocean fusion |
|
|
Visible light mode |
Two modes :Fog Penetration function on/off |
|
|
Image Mode |
Infrared, low Visible light, Visible light, fusion. |
|
|
Light leakage protection |
With proximity sensor, the screen automatically display or off. |
|
|
Video Output |
HDMI high-definition video output |
|
|
Image Transmission |
WiFi real-time image transmission, support cell phone APP image browsing, photo, video, remote control, for IOS & Android system. |
|
|
Memory |
||
|
Memory |
Built-in 128GB. |
|
|
Photo |
Support, ≥80,000 JPG, support local playback browsing and deletion |
|
|
Video |
Support, ≥ 24 hours MP4, support for local playback browsing and deletion |
|
|
Power Supply System |
||
|
Battery Type |
18650 rechargeable lithium battery |
|
|
Battery operating time |
≥13.5h |
|
|
External Power Supply |
DC12V |
|
|
Interface |
||
|
Communication Interface |
RS232 |
|
|
Video Interface |
HDMI |
|
|
Memory Interface |
USB |
|
|
Power supply interface |
DC 12V |
|
|
Tripod Hole |
1/4”-20-UNC |
|
|
Physical Characteristics |
||
|
Dimension |
238*230*117mm |
|
|
Lens Cap |
Yes |
|
|
Eyeshade |
Yes |
|
|
Both Hand Stamp |
Yes |
|
|
Housing Material |
Alloy with soft rubber protection. |
|
|
Environmental parameters |
||
|
Working Temperature |
-30℃~ +60℃ |
|
|
Storage Temperature |
-40℃~ +70℃ |
|
|
Detection distance |
||
|
Human （1.8*0.5m） |
3700m |
|
|
Car （2.3*2.3m） |
5100m |
|
-
